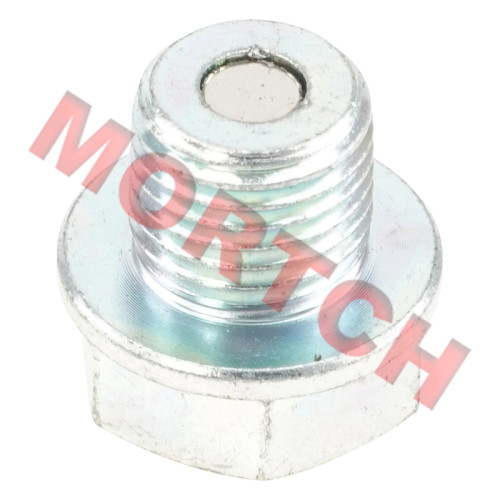

Magnetic Drain Bolt M14x1.5

Brand: Mortch Motor
Product Code: MICF0JWA-012200-00001

Product Viewed: 52

Availability: In Stock

Weight: 0.04kg

0 reviews / Write a review

US$2.40

Shipping To：

More Quotes

🔧 CFMoto Magnetic Drain Bolt M14×1.5

📦 Part Number: 0JWA-012200-00001

⚙️ Magnetic Drain Bolt · Drain Plug · OEM Specification

📍 Installation Position: Engine/Transmission oil pan drain port

✅ Single unit · High-strength metal · Direct fit · Compatible with multiple CFMoto ATV/SSV/UTV models

📋 Product Overview

This product is a CFMoto OEM specification Magnetic Drain Bolt, part number 0JWA-012200-00001, with thread size M14×1.5, sold as a single unit. This drain bolt is an important component of the engine or transmission oil pan, used to drain lubricating oil. A powerful magnet is built into the tip to capture metal particles and ferromagnetic debris from the oil during draining — helping to monitor internal wear conditions and extend oil service life.

Over time, the magnetic drain bolt may lose magnetic strength, suffer thread damage, or have a worn sealing washer — leading to poor sealing or oil leaks. Timely replacement with an OEM-spec magnetic drain bolt is essential to ensure oil pan sealing and oil cleanliness monitoring function.

✅ OEM Quality Assurance: Manufactured strictly to CFMoto original technical standards using high-strength metal. Thread specifications and magnetic performance are identical to genuine parts, ensuring a perfect replacement and reliable drain and monitoring performance.

📐 Specifications

🔖 Part Number: 0JWA-012200-00001

🏷️ Product Name: Magnetic Drain Bolt M14×1.5

📐 Thread Size: M14 × 1.5

📦 Packaging: Single unit

📍 Installation Position: Engine/Transmission oil pan drain port

🧪 Material: High-strength metal (with powerful built-in magnet)

⚙️ Function: Drain oil · Capture metal particles

🚗 Vehicle Compatibility

This Magnetic Drain Bolt (part number 0JWA-012200-00001, M14×1.5, single unit) is compatible with the following CFMoto models:

🏍️ 2V91W-A · CForce 850XC / 800XC

CF800ATR-3 · CForce 850XC
CF800AU-2A · CForce 850XC
CF800AZ-2A · CForce 800XC

🏍️ 2V91W-D · CForce 800/850XC

CF800AU-2AF · CForce 800XC / CForce 850XC

🏎️ 2V91W-G · ZForce 800 Sport

CF800SU-3 · ZForce 800 Sport

🏍️ 2V91Y-C · CForce 1000 Overland

CF1000AU-F · CForce 1000 Overland
CF1000AZ · CForce 1000 Overland

🏎️ 2V91Y-D · ZForce 950/1000 Series

CF1000US-J · ZForce 1000 (Police)
CF1000SU-3 · ZForce 950 Trail
CF1000SU-3A · ZForce 950 Sport
CF1000SU-3L · ZForce 950 Sport-4
CF1000SU-D · ZForce 950 H.O.EX / ZForce 1000 Sport R
CF1000SU-E · ZForce 950 H.O.Sport
CF1000SZ-3L · ZForce 950 Sport 4
CF1000SZ-D · ZForce 950 HO EX
CF1000SZ-E · ZForce 950 HO Sport
CF1000UTR-C · ZForce 1000 Sport R
CF1000STR-3L · ZForce 950 Sport-4
CF1000SZ-3 · ZForce 950 Trail
CF1000SZ-3A · ZForce 950 Sport
CF1000UTR-6(T1b) · ZForce 950 Sport

🚜 2V91Y-U10 · UForce 1000 Series

CF1000UTR-3 · UForce 1000
CF1000UTR-5 · UForce 1000 XL
CF1000UU · UForce 1000
CF1000UU-2 · UForce 1000 XL
CF1000UZ · UForce 1000
CF1000UZ-2 · UForce 1000 XL
CF1000UZ-2A · UForce 1000 XL
CF1000UZ-A · UForce 1000
CM1000UZ-2A · UForce 1000 XL Alpine
CM1000UZ-A · UForce 1000 Alpine

🏍️ 2V91Y-X10 · CForce 1000 Series

CF1000ATR · CForce 1000
CF1000AU · CForce 1000 EPS Overland

🏎️ 2V91Y-Z10/Z1000 · ZForce 1000 Series

CF1000US · ZForce 1000EX
CF1000US-A · ZForce 950 Sport / ZForce 1000 Sport
CF1000UTR-B · ZForce 1000 Sport
CF1000US-2 · ZForce 1000
CF1000UTR-2 · ZForce 1000

📌 Fitment Note: This magnetic drain bolt (M14×1.5) fits the engine/transmission oil pan drain port of the listed CFMoto models. Sold as a single unit. If your specific model is not listed, please contact us with your VIN for compatibility confirmation.

⚙️ Product Features

✅ OEM Original Specification: Manufactured strictly to CFMoto original technical standards; thread specifications and dimensions match genuine parts exactly.
🧲 Built-in Powerful Magnet: A strong magnet is built into the tip to capture metal particles and ferromagnetic debris from the oil.
🛡️ High-Strength Metal: Made from premium metal with excellent tensile strength and corrosion resistance.
🔧 Precision Machined: Threads are precision-machined for reliable sealing.
🔄 Direct Replacement: Directly replaces original drain bolts with thread damage or sealing failure.

✅ Typical Signs That Magnetic Drain Bolt Replacement Is Needed:
• Thread damage or stripping on the drain bolt.
• Sealing washer is worn — oil leaks are visible.
• Bolt head is deformed or damaged.
• Magnetic strength is significantly reduced — no longer captures metal particles effectively.
• Replace during routine maintenance for preventative care.
If you experience any of these symptoms, replace the magnetic drain bolt promptly.

✅ Installation Tips:
1. Drain the old engine or transmission oil before replacing the drain bolt.
2. Clean the drain port and sealing surface.
3. Before installation, inspect the sealing washer condition.
4. Hand-start the bolt to ensure smooth thread engagement.
5. Tighten to OEM torque specifications using a torque wrench.
Professional installation is recommended to ensure correct torque.

⚠️ Important Notice: This product is a CFMoto Magnetic Drain Bolt, part number 0JWA-012200-00001, thread size M14×1.5, sold as a single unit. Compatible with the listed CFMoto models. Slight variations may occur between production batches. If your specific model is not listed, please contact us with your VIN for compatibility verification. Images are for reference only; actual product may vary. Always use a torque wrench and tighten to OEM specifications.
