Limit Gasket

Brand: Mortch Motor
Product Code: MICF0180-064001-0010

Product Viewed: 10

Availability: In Stock

Weight: 0.01kg

0 reviews / Write a review

US$0.65

Shipping To：

More Quotes

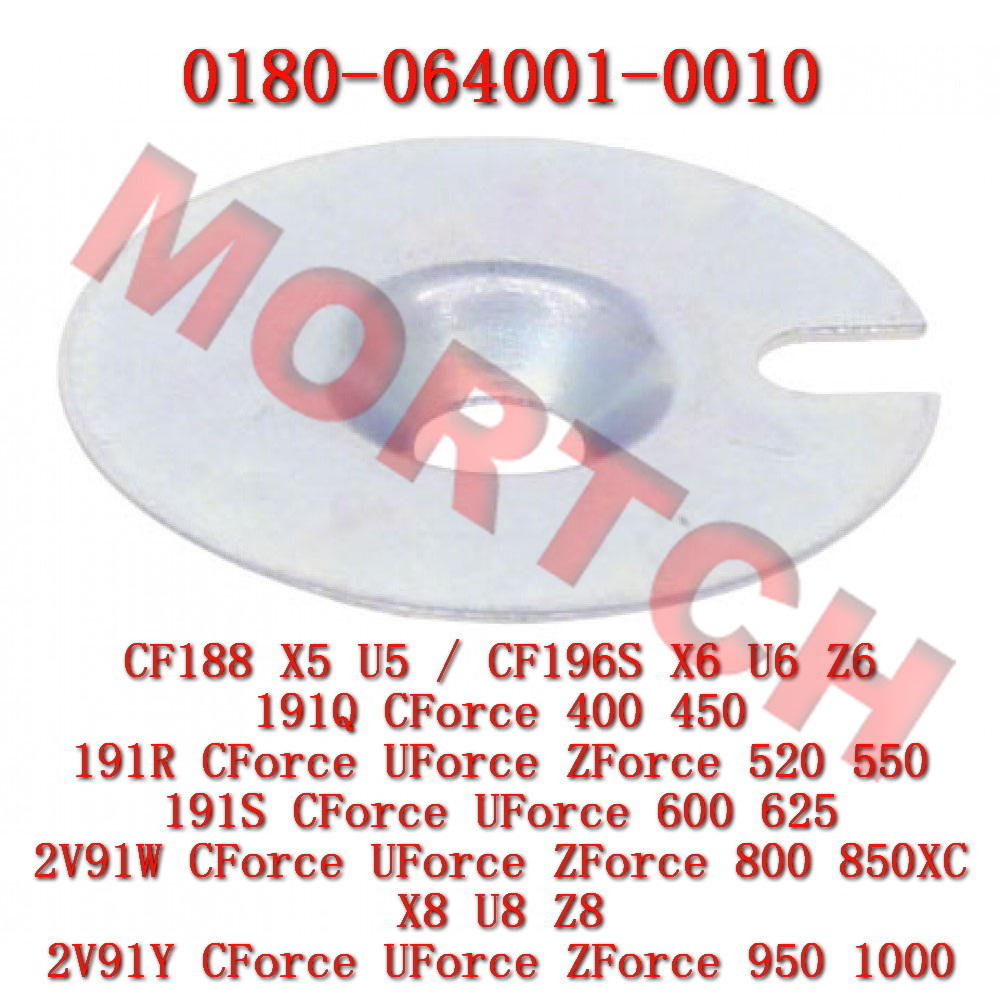

CFMoto Limit Gasket

Part Number: 0180-064001-0010

🔧 Limit Gasket · OEM Quality · Direct Replacement

OEM Specification · Shift Drum Positioning · Precise & Reliable Shifting

📋 Product Overview

This is a genuine CFMoto Limit Gasket with part number 0180-064001-0010. This gasket is installed on the shift drum of the transmission shift assembly, serving as a critical positioning component in the transmission shift mechanism. It limits axial movement and rotational travel of the shift drum, ensuring precise positioning at each gear position during shifting, thereby guaranteeing shift accuracy and reliability. Manufactured from high-quality wear-resistant material with precise thickness and excellent compression resistance. An ideal replacement for the original limit gasket.

✨ Product Type: Shift Drum Limit Gasket

✨ Part Number: 0180-064001-0010

✨ Installation Position: Transmission Shift Assembly · Shift Drum

✨ Material: High-quality wear-resistant material

🔧 Compatible Models

This Limit Gasket fits the following CFMoto models (including various country versions):

🏍️ 1000cc ATV Series — CForce 1000

ATV CF1000ATR / CF1000ATR(GD/HLG/KSR/SS) CForce 1000
ATV CF1000AU / CF1000AU(AU/CA/RU/ST/US/Official) CForce 1000 EPS Overland
ATV CF1000AU-F / CF1000AU-F(GD/HLG/KSR) CForce 1000
ATV CF1000AZ / CF1000AZ(CA/US) CForce 1000 Overland

🏍️ 800cc ATV Series — CForce 800/850XC

ATV CF800-2 / CF800ATR / CF800ATR-2 X8 / CForce 800
ATV CF800ATR-3 / CF800ATR-3(GD/HLG/KSR/SS) CForce 850XC
ATV CF800AU-2A / CF800AU-2A(AU/CA/HLG/KSR/RU/ST/US/Official) CForce 800XC/850XC
ATV CF800AU-2AF / CF800AU-2AF(HLG/KSR) CForce 800XC/850XC
ATV CF800AU-2B CForce 800
ATV CF800AZ-2A / CF800AZ-2A(CA/US) CForce 800XC

🏍️ 600cc ATV Series — CForce 600/625

ATV CF600ATR-2L / CF600ATR-2L(T3b) / CF600ATR-2L(T3b)(GD/HLG/KSR/SS) CForce 625 Touring
ATV CF600ATR-2LC / CF600ATR-2LC(GD/HLG/KSR/SS) CForce 625 Touring
ATV CF600ATR-2S / CF600ATR-2S(T3b) / CF600ATR-2S(T3b)(GD/HLG/KSR/SS) CForce 625
ATV CF600ATR-2SC / CF600ATR-2SC(GD/SS) CForce 625
ATV CF600ATR-L / CF600ATR-L(T3a/T3b) CForce 600/625
ATV CF600AU-3L / CF600AU-3L(AU/CA/HLG/KSR/RU/US) CForce 600 Touring/625 Touring
ATV CF600AU-3LA / CF600AU-3LA(AU/RU/ST/US) CForce 600 Touring/625 Touring
ATV CF600AU-3LF / CF600AU-3LF(GD/HLG/KSR) CForce 600 Touring/625 Touring
ATV CF600AU-3LH CForce 600 Touring/625 Touring
ATV CF600AU-3S / CF600AU-3S(AU/CA/HLG/KSR/RU/US) CForce 600/625
ATV CF600AU-3SA / CF600AU-3SA(AU/RU/ST/US) CForce 625 EPS
ATV CF600AU-3SF / CF600AU-3SF(HLG/KSR) CForce 600
ATV CF600AU-3SH CForce 600
ATV CF600AU-L / CF600AU-L(EU168/INTERNATIONAL/US) CForce 600 EPS
ATV CF600AZ-3L / CF600AZ-3L(CA/US) CForce 600
ATV CF600AZ-3LA / CF600AZ-3LA(CA/US) CForce 600 Touring
ATV CF600AZ-3S / CF600AZ-3S(CA/US) CForce 600
ATV CF600AZ-3SA / CF600AZ-3SA(CA/US) CForce 600
ATV CF600-B / CF600-C / CF625-2 / CF625-2A / CF625-B / CF625-C X6

🏍️ 500cc ATV Series — CForce 500/520/550

ATV CF500 / CF500-2 / CF500-2A / CF500-5 / CF500-5A / CF500-5B / CF500-5C / CF500-A / CF500-B / CF500-C / CF500-D / CF500-E X5
ATV CF500ATR CForce 520
ATV CF500ATR-11L / CF500ATR-11L(SS) GOES TERROX 500L
ATV CF500ATR-11S GOES TERROX 500S
ATV CF500ATR-15L GOES TERROX 550L T3b
ATV CF500ATR-17L GOES TERROX 500L EPS T3b
ATV CF500ATR-2L / CF500ATR-2L(T3a/T3b) / CF500ATR-2L(T3b)(GD/HLG/KSR/SS) CForce 520L
ATV CF500ATR-2LC CForce 520L
ATV CF500ATR-2S / CF500ATR-2S(T3a/T3b) / CF500ATR-2S(T3b)(GD/SS) CForce 520S
ATV CF500ATR-2SC CForce 520S
ATV CF500ATR-3 / CF500ATR-3(T3a) CForce 520
ATV CF500ATR-5L(T3b) COBALT MAX T3
ATV CF500ATR-5S(T3b) COBALT T3
ATV CF500ATR-9L / CF500ATR-9L(T3a/T3b) / CF500ATR-9L(T3b)(GD/HLG/KSR/SS) CForce 520 L
ATV CF500ATR-9S(T3a/T3b) / CF500ATR-9S(T3b)(GD/HLG/KSR/SS) CForce 550
ATV CF500ATR-A CForce 550
ATV CF500AU-10S / CF500AU-10S(US) CForce 500 S
ATV CF500AU-6B CForce 550
ATV CF500AU-6L / CF500AU-6L(CA) CForce 550
ATV CF500AU-7A CForce 520S
ATV CF500AU-7C / CF500AU-7C(HLG/KSR) CForce 520L
ATV CF500AU-7L CForce 520L
ATV CF500AU-7LA GOES TERROX 500L
ATV CF500AU-7LF / CF500AU-7LF(HLG/KSR) CForce 520L
ATV CF500AU-7S / CF500AU-7S(AU/CA/US) CForce 520 S
ATV CF500AU-7SA GOES TERROX 500S
ATV CF500AU-7SF / CF500AU-7SF(GD) CForce 500S/CForce 520S
ATV CF500AU-8L COBALT MAX L7e
ATV CF500AU-8S COBALT L7e
ATV CF500AU-9L / CF500AU-9L(GD/HLG/KSR/RU/ST) CForce 520 L
ATV CF500AU-9LH CForce 520 L
ATV CF500AU-9S / CF500AU-9S(GD) CForce 520/500
ATV CF500AU-9SH CForce 520
ATV CF500AZ-10S / CF500AZ-10S(CA/US) CForce 500 S
ATV CF500AZ-9S / CF500AZ-9S(AU/CA/US) CForce 500/520
ATV GOES500 / GOES500-A

🏍️ 400cc ATV Series — CForce 400/450

ATV CF400ATR CForce 450
ATV CF400ATR-2L / CF400ATR-2L(T3a/T3b) / CF400ATR-2L(T3b)(HLG/KSR/SS) CForce 450L
ATV CF400ATR-2S / CF400ATR-2S(T3a/T3b) / CF400ATR-2S(T3b)(GD/HLG/KSR/SS) CForce 450S
ATV CF400ATR-3L / CF400ATR-3L(T3a/T3b) / CF400ATR-3L(T3b)(HLG/KSR/SS) CForce 450L
ATV CF400ATR-3S / CF400ATR-3S(T3a/T3b) / CF400ATR-3S(T3b)(GD/HLG/KSR/SS) CForce 450
ATV CF400ATR-4L / CF400ATR-4L(SS) GOES TERROX 400L
ATV CF400ATR-4S GOES TERROX 400S
ATV CF400ATR-5L(T3b) IRON MAX T3
ATV CF400ATR-5S(T3b) IRON T3
ATV CF400ATR-L CForce 450L
ATV CF400AU / CF400AU(AU/CA/US/Police) CForce 400S/450S
ATV CF400AU-2L IRON MAX L7e
ATV CF400AU-2S IRON L7e
ATV CF400AU-3L / CF400AU-3L(Official/Fire) CForce 450L
ATV CF400AU-3LH CForce 450L
ATV CF400AU-3S / CF400AU-3S(GD/HLG/KSR) CForce 450S
ATV CF400AU-3SH CForce 450S
ATV CF400AU-6S / CF400AU-6S(US) CForce 450S
ATV CF400AU-A / CF400AU-A(HLG/KSR) CForce 450S
ATV CF400AU-B / CF400AU-B(HLG/KSR) CForce 450L
ATV CF400AU-G GOES TERROX 400S
ATV CF400AU-L / CF400AU-L(CA/RU) CForce 400L/450L
ATV CF400AU-LA GOES TERROX 400L
ATV CF400AU-LF CForce 450L
ATV CF400AU-SF / CF400AU-SF(GD/HLG/KSR) CForce 450S
ATV CF400AZ-3L / CF400AZ-3L(CA/RU/ST/Official/Fire) CForce 400 TOURING / CForce 450L
ATV CF400AZ-3S / CF400AZ-3S(AU/CA/ST/US) CForce 400/450
ATV CF400AZ-6L / CF400AZ-6L(CA) CForce 450L
ATV CF400AZ-6S / CF400AZ-6S(CA/US) CForce 450S
ATV CF400AZ-6S-CLS CForce 400 Classic

🏍️ SSV Series — ZForce

POLICE MOTORCYCLE CF1000US-J ZForce 1000
SSV CF1000STR-3L / CF1000STR-3L(GD/SS) ZForce 950 SPORT-4
SSV CF1000SU-3 / CF1000SU-3(US) ZForce 950 TRAIL
SSV CF1000SU-3A / CF1000SU-3A(US) ZForce 950 SPORT
SSV CF1000SU-3L / CF1000SU-3L(US) ZForce 950 SPORT-4
SSV CF1000SU-D / CF1000SU-D(AU/RU/ST/US) ZForce 950 H.O.EX / ZForce 1000 Sport R
SSV CF1000SU-E / CF1000SU-E(ST) ZForce 950 H.O.SPORT
SSV CF1000SZ-3 / CF1000SZ-3(CA/US) ZForce 950 TRAIL
SSV CF1000SZ-3A / CF1000SZ-3A(AU/CA/ST/US) ZForce 950 SPORT
SSV CF1000SZ-3L / CF1000SZ-3L(AU/CA/RU/ST/US) ZForce 950 Sport 4 / ZForce 1000 Crew
SSV CF1000SZ-D / CF1000SZ-D(CA/US) ZForce 950 HO EX
SSV CF1000SZ-E / CF1000SZ-E(CA/US) ZForce 950 HO Sport
SSV CF1000US / CF1000US(AU/RU) ZForce 1000EX
SSV CF1000US-2 / CF1000US-2(CA/US) ZForce 1000
SSV CF1000US-A / CF1000US-A(CA/US) ZForce 950 Sport / ZForce 1000 Sport
SSV CF1000UTR-2 / CF1000UTR-2(GD) ZForce 1000
SSV CF1000UTR-6(T1b) / CF1000UTR-6(T1b)(GD/HLG/KSR/SS) ZForce 1000
SSV CF1000UTR-B / CF1000UTR-B(GD/HLG/KSR/SS) ZForce 1000 Sport
SSV CF1000UTR-C / CF1000UTR-C(GD/HLG/KSR/SS) ZForce 1000 Sport
SSV CF500US / CF500US(CA/US) ZForce 500 Trail
SSV CF500US-EX ZForce 550EX
SSV CF500UTR / CF500UTR(T1a/T1b) / CF500UTR(T1a)(SS) / CF500UTR(T1b)(GD) ZForce 550EX
SSV CF600-3 / CF600-6 / CF625-3 / CF625-6 Z6
SSV CF800 / CF800(CA/US/Z8) ZForce 800EX
SSV CF800SU-2 / CF800SU-2(US) ZForce 800 Trail
SSV CF800SU-3 ZForce 800 SPORT
SSV CF800SZ-2 / CF800SZ-2(AU/CA/ST/US) ZForce 800 Trail
SSV CF800SZ-3 ZForce 650
SSV CF800US-A / CF800US-A(CA/US) ZForce 800 Trail
SSV CF800UTR ZForce Z8-EX

🏍️ UTV Series — UForce

UTV CF1000UTR-3 / CF1000UTR-3(GD/HLG/KSR/SS) UForce 1000
UTV CF1000UTR-5 / CF1000UTR-5(GD/HLG/KSR/SS) UForce 1000 XL
UTV CF1000UU / CF1000UU(AU/CA/RU/ST/US) UForce 1000 / Hunter
UTV CF1000UU-2 / CF1000UU-2(AU/RU/ST/US/Police) UForce 1000 XL
UTV CF1000UZ / CF1000UZ(CA/US) UForce 1000
UTV CF1000UZ-2 / CF1000UZ-2(CA/US) UForce 1000 XL
UTV CF1000UZ-2A / CF1000UZ-2A(US) UForce 1000
UTV CF1000UZ-A / CF1000UZ-A(US) UForce 1000
UTV CF500-3 UForce 500 U5
UTV CF500UTR-2 / CF500UTR-2(GD) UForce 550
UTV CF500UU / CF500UU(CA/US) UForce 550 / 500
UTV CF600-5 UForce U6
UTV CF600UTR / CF600UTR(T1b) / CF600UTR(T1b)(GD/HLG/KSR/SS) UForce 600
UTV CF600UU / CF600UU(AU/ST/US/Police) UForce 600 / Hunter
UTV CF600UZ / CF600UZ(CA/US) UForce 600
UTV CF800-3 / CF800-3(CA/US) UForce 800
UTV CF800UTR-2 / CF800UTR-2(GD/HLG/KSR/SS) UForce 800
UTV CF800UU-A / CF800UU-A(AU/HLG/KSR) UForce 800
UTV CM1000UZ-2A / CM1000UZ-2A(CA/US) UForce 1000 XL Alpine
UTV CM1000UZ-A / CM1000UZ-A(US) UForce 1000 Alpine

📌 Important Note: This Limit Gasket has part number 0180-064001-0010 and is specifically installed on the shift drum of the transmission shift assembly. It fits the CFMoto ATV, SSV, and UTV models listed above, covering CForce, ZForce, UForce series and various country versions. Before ordering, please verify your model is listed or check your original part number for correct fitment.

⚙️ Product Features

OEM Quality: Manufactured strictly to CFMoto original specifications, identical dimensions.
Shift Drum Limiting: Precisely limits axial movement and rotational travel of the shift drum for accurate shifting.
Wear Resistant: Made of high-quality wear-resistant material with excellent compression strength and long service life.
Reliable Shifting: Ensures precise positioning of the shift drum at each gear position, preventing gear slipping or difficult shifting.
Direct Replacement: Direct fit installation, no modifications needed, restores proper transmission operation.

🛑 Function of the Shift Drum Limit Gasket

The shift drum (shift cam) is the core component of the transmission shift mechanism. Its outer surface features guide grooves where shift forks slide to engage different gears. The limit gasket is installed at the end of the shift drum, serving two critical functions: 1) Limits axial movement of the shift drum to ensure proper engagement between shift forks and guide grooves; 2) Works with the shift detent mechanism to precisely position the shift drum at each gear position. If this gasket becomes worn, cracked, or missing, it may cause excessive axial play, inaccurate shift positioning, gear slipping, difficult shifting, or abnormal noise. Timely replacement is recommended.

⚠️ Installation Tip: Shift drum limit gasket replacement involves internal transmission components and should be performed by a professional mechanic. Drain the transmission fluid and remove the necessary covers before installation. Clean the shift drum end and mounting surface, removing all oil residue and debris. Install the new gasket in the correct orientation and verify the axial clearance meets specifications. After installation, perform shift testing to ensure smooth engagement and clear detent feel at each gear position. It is recommended to also inspect the shift forks and shift drum guide grooves for wear.

🔧 Compatibility Notice

Please verify that this part fits your specific vehicle model and year. Many vehicles share similar names but use different components depending on year or market region.
We strongly recommend cross-checking with your vehicle's owner's manual or contacting us for confirmation before placing your order.

📄 Product Disclaimer

Product images, measurements, and descriptions are for reference only. Slight variations in color or appearance may occur due to manufacturing batches or photography lighting—functional specifications remain identical to the ordered part.
Professional installation is mandatory. Mortch Motor assumes no liability for damages, injuries, or losses resulting from improper installation, misuse, unauthorized modification, or abnormal operation.
