Needle P5x7.8
- Brand: Mortch Motor
- Product Code: MICF30406-00501
- Product Viewed: 6
- Availability: In Stock
- Weight: 0.00kg
US$0.10
| Shipping To： |
🔧 CFMoto Dowel Pin
📦 Part Number: 30406-00501
⚙️ Dowel Pin / Roller Pin · P5x7.8 · OEM Specification
📍 Installation Position: Engine Case Mating Surface / Cylinder Alignment / Component Positioning
✅ Precision Manufactured · Wear Resistant · Fits CFMoto 400cc/650cc/700cc Engine Series

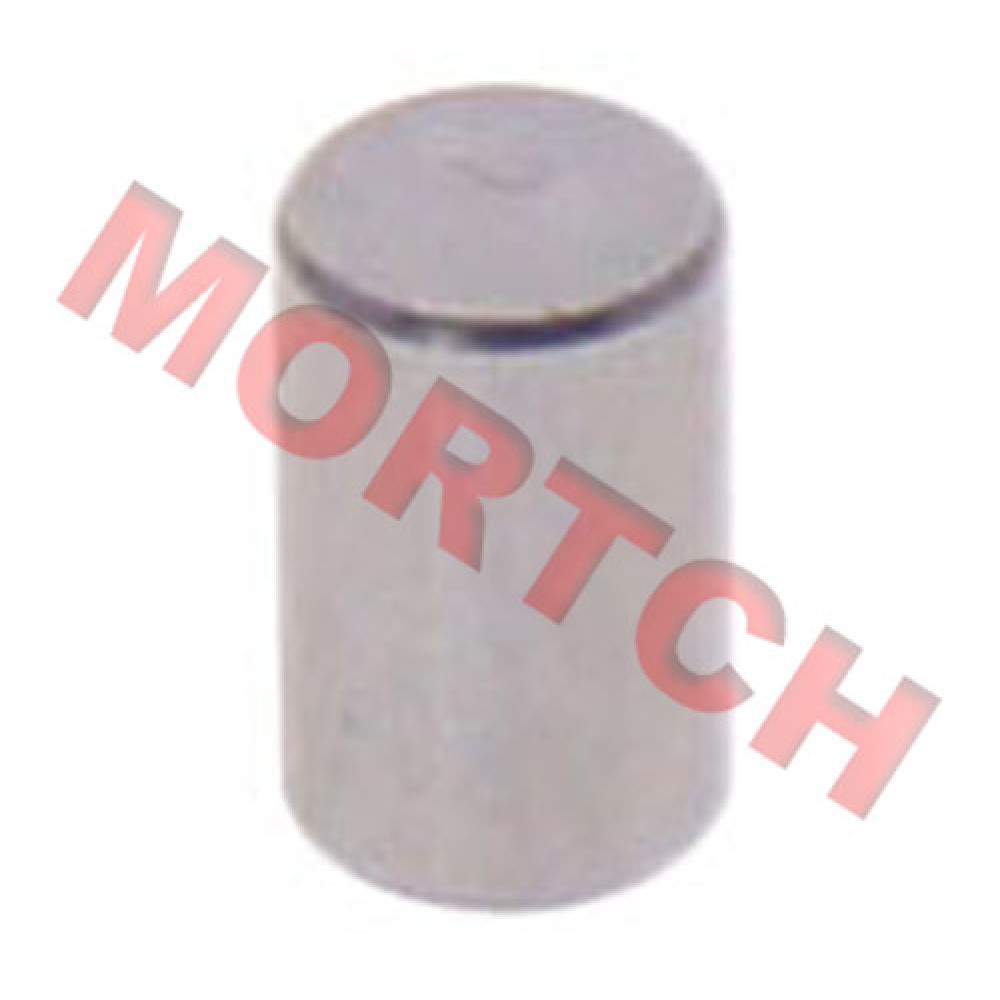

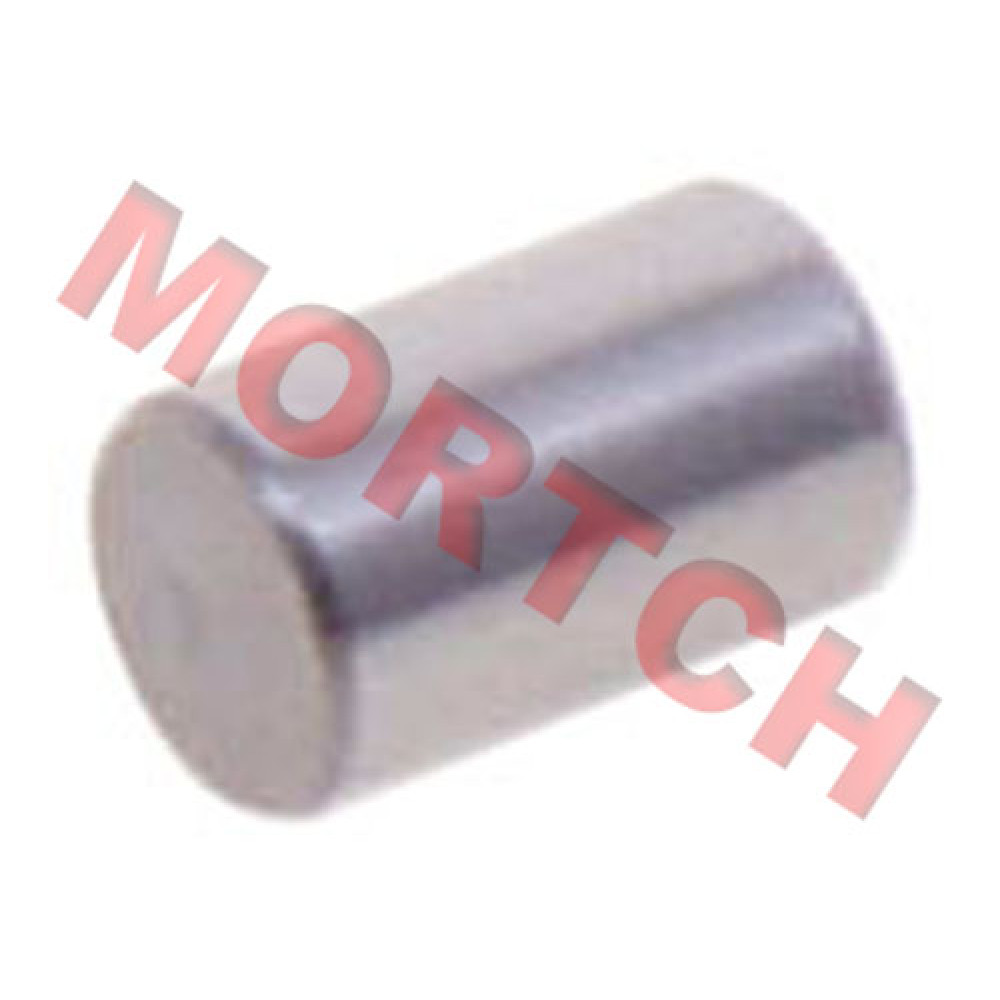

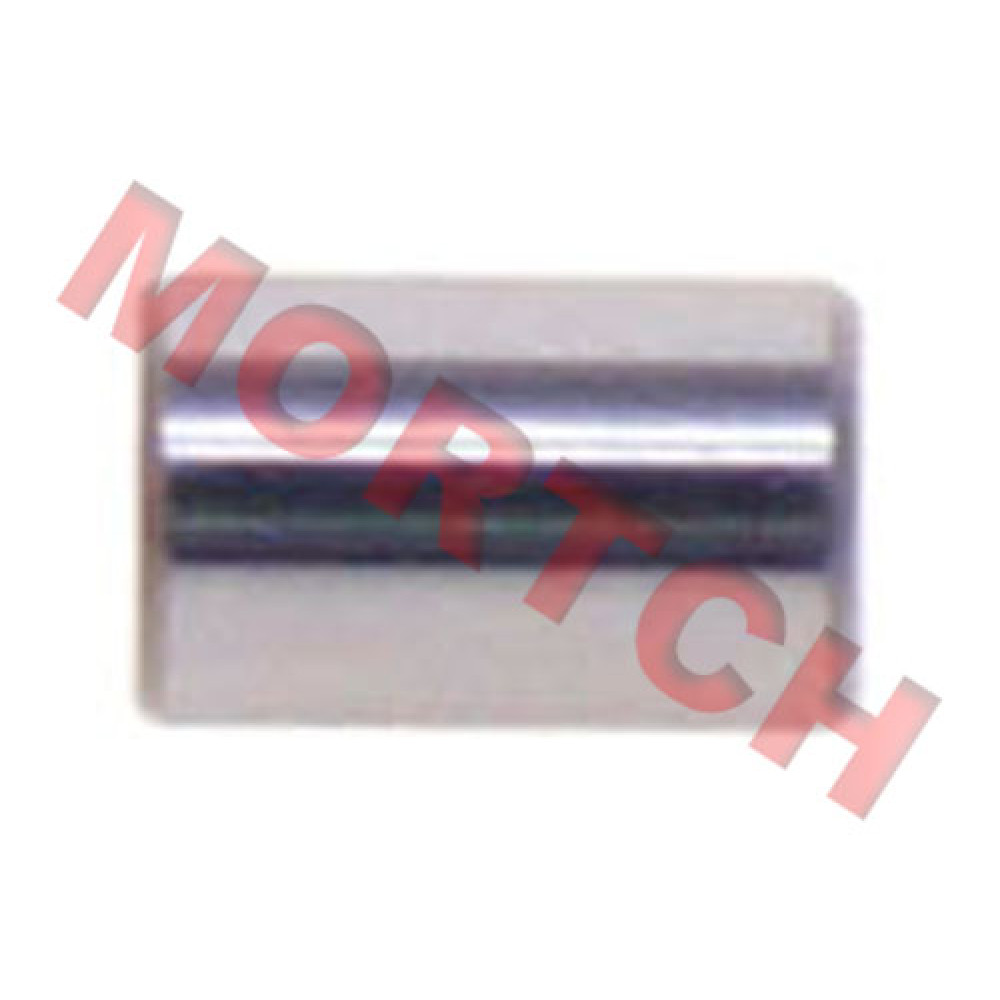

This product is a CFMoto OEM-spec dowel pin (roller pin), part number 30406-00501, size P5x7.8 (5mm diameter × 7.8mm length). Dowel pins are critical alignment components used during engine assembly, installed at the mating surfaces between crankcase halves, cylinder block, cylinder head, and other components. They ensure precise alignment between parts, prevent relative movement, and guarantee assembly accuracy and sealing effectiveness.
Dowel pins are easily lost, damaged, or deformed during engine disassembly and reassembly. Timely replacement of missing or damaged dowel pins is essential to maintain engine assembly precision and prevent oil or compression leaks.
✅ Genuine Quality Assurance: Manufactured strictly to CFMoto original technical standards. Dimensional accuracy and material hardness are identical to the original part for perfect fitment.
This dowel pin (30406-00501 / P5x7.8) fits the following CFMoto engines and models:
- 268MQ (2015-2021) · FOR CF400-5
- 268MQ-A (2022)
- 268MQ-B (2022)
- 283MT (2013-2017) · 650cc
- 283MT-C (2022-2024) · CF650-3F / CF650-7F / CF650-8F
- 283MU (2020-2022)
- 283MU (2025) · 700-9A
- 283MU (2023-2025) · CF700-2A/2C/2D/2DH/9F
- 380Y-2A (2025) · Z10
- 380Y-2C (2026)
- 380Y-3 (2025-2026) · UForce 1000 XL
- CF400-A(EU4) · 400NK (2017-2019)
- CF650-3 / CF650-3C(EU4) · 650MT (2016-2020)
- CF650-3F(EU5) · 650 Series (2021-2022)
- CF650-7B / CF650-7C(EU4) · 650NK (2017-2020)
- CF650-7F(EU5) · 650 Series (2021-2022)
- CF650-8-01 · 650GT (2019)
- CF650-8F(EU5) · 650GT (2021-2022)
- CF700-2 CLX (EU5) · 700 CL-X (2021-2022)
- CF700-2A(EU5) · 700 Series (2021-2022)
- CF700-9F(EU5) · 700 Series (2023)
📌 Fitment Note: This dowel pin fits the CFMoto engine series listed above (268MQ, 283MT, 283MU, 380Y, etc.) and the motorcycle models equipped with these engines (400NK, 650MT, 650NK, 650GT, 700CL-X, etc.). Dowel pins are standard components shared across multiple engine types. If your specific model is not listed, please contact customer service with your VIN for confirmation.
- ✅ OEM Specification: Manufactured strictly to CFMoto original technical standards; dimensional accuracy identical to the original part.
- 🛡️ Precision Outer Diameter: Outer diameter is precision ground for tight fit with locating holes, ensuring accurate alignment.
- 💪 High-Quality Material: Made from high-quality carbon structural steel or bearing steel for wear resistance and dimensional stability.
- 🔧 Direct Replacement: Directly replaces lost, damaged, or deformed original dowel pins.
- ⚡ Ensures Assembly Accuracy: Proper installation of dowel pins guarantees precise alignment of crankcase halves, cylinders, and other components.
• Original dowel pins lost during engine disassembly and repair.
• Dowel pins are rusted, deformed, or damaged.
• Loose fit in mounting holes causing poor alignment.
• Replacing crankcase, cylinder block, cylinder head, or other major components requires new dowel pins.
• Always use new dowel pins during engine overhaul to ensure assembly precision.
If any of these conditions occur, replace the dowel pins promptly.
1. Clean the dowel pin holes thoroughly before installation, removing oil and debris.
2. Inspect the dowel pin holes for burrs or damage; repair if necessary.
3. Gently tap or press the dowel pin into the hole, ensuring it is fully seated.
4. The dowel pin should protrude slightly above the mating surface for proper alignment.
5. When joining components, ensure dowel pins correctly enter the corresponding holes before tightening bolts.
6. It is recommended to replace dowel pins with new ones after each engine disassembly for optimal alignment accuracy.
Professional installation is recommended.
- Please verify that this part fits your specific vehicle model and year. Many vehicles share similar names but use different components depending on year or market region.
- We strongly recommend cross-checking with your vehicle's owner's manual or contacting us for confirmation before placing your order.
- Product images, measurements, and descriptions are for reference only. Slight variations in color or appearance may occur due to manufacturing batches or photography lighting—functional specifications remain identical to the ordered part.
- Professional installation is mandatory. Mortch Motor assumes no liability for damages, injuries, or losses resulting from improper installation, misuse, unauthorized modification, or abnormal operation.
- All listed prices EXCLUDE shipping costs, import duties, taxes, and customs clearance fees. These charges (if applicable) are determined and collected by your local customs authority and are solely the buyer's responsibility.
- In case of return due to unpaid duties/taxes or refusal to clear customs, the buyer shall bear the original shipping cost, return shipping fees, and any associated administrative charges deducted from the refund.
