Front Gear Case Bevel Gear Assy

Brand: Mortch Motor
Product Code: MICFQ830-3100B0

Product Viewed: 342

Availability: In Stock

Weight: 1.47kg

Packing Size: 16.00 x 15.00 x 4.00cm

0 reviews / Write a review

US$50.00

Shipping To：

More Quotes

CFMoto Front Gear Case Bevel Gear Assembly

OEM Part Number Q830-3100B0

Front Axle Final Drive Bevel Gear Set · Includes Drive Pinion and Ring Gear

📋 Overview

This is a genuine CFMoto front gear case bevel gear assembly, part number Q830-3100B0. This assembly includes the front drive pinion bevel gear (input shaft gear) and the front differential ring bevel gear, which are core components of the front axle transmission, responsible for transmitting power from the driveshaft to the front differential for torque multiplication and power steering. Directly replaces original worn or damaged bevel gear sets, restoring front axle drive performance. Fits various CFMoto ATV models, including CForce, GOES TERROX series.

✨ OEM Quality: Precision machined from high-quality alloy steel with heat-treated tooth surfaces, high strength, good wear resistance, ensuring smooth and quiet operation.

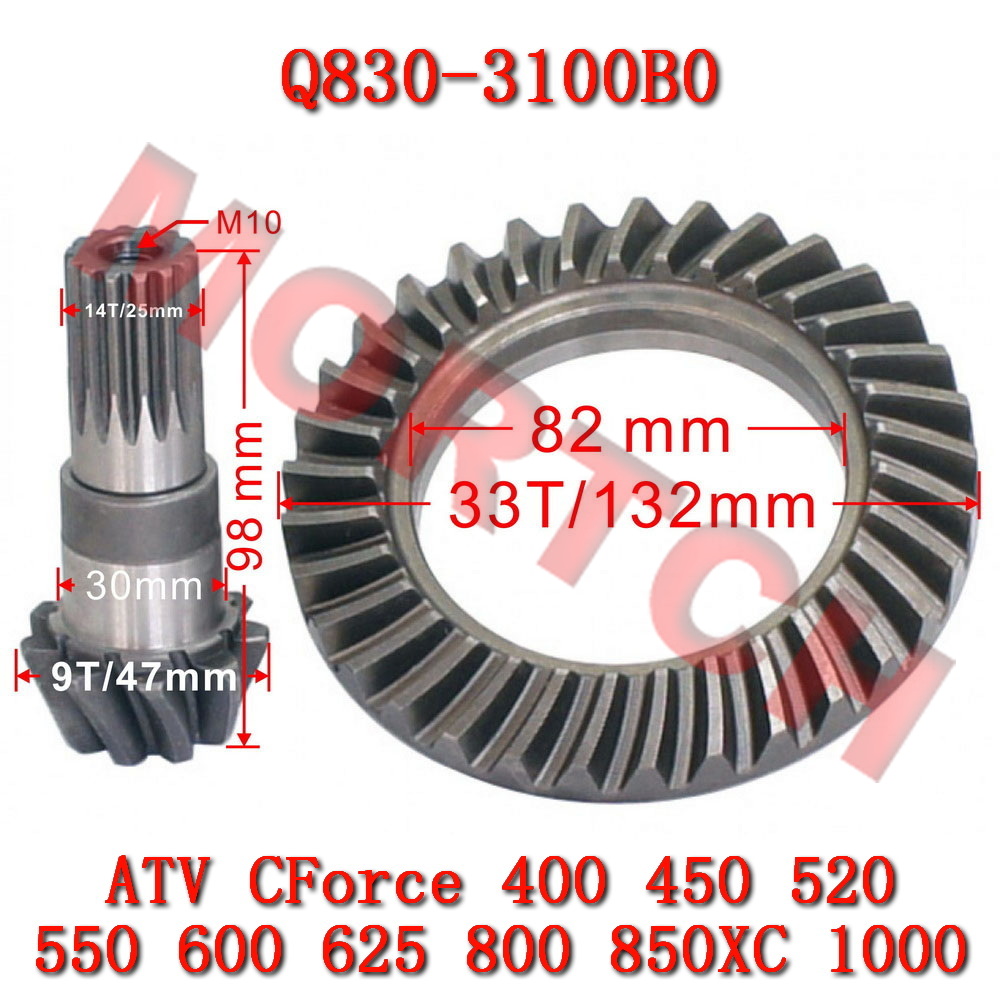

📐 Specifications

⚙️ Drive Pinion Gear

Teeth 9T

Spline Spec 14T / 25mm

Overall Length 98mm

⚙️ Ring Gear

Teeth/OD 33T / 132mm

Inner Diameter 82mm

Bolt Hole Spacing 37mm (center to center)

🔧 Compatible Models

This bevel gear assembly (Q830-3100B0) fits the following CFMoto models:

🏍️ 1000cc Series

ATV CF1000ATR CForce 1000
ATV CF1000AU CForce 1000 EPS Overland
ATV CF1000AU-F CForce 1000
ATV CF1000AZ CForce 1000 Overland
POLICE MOTORCYCLE CF1000AU (Official) CForce 1000 EPS Overland

🏍️ 800/850cc Series

ATV CF800ATR-3 CForce 850XC
ATV CF800AU-2A CForce 850XC
ATV CF800AU-2AF CForce 800XC/CForce 850XC
ATV CF800AZ-2A CForce 800XC
POLICE MOTORCYCLE CF800AU-2A(Official) CForce 850XC

🏍️ 600/625cc Series

ATV CF600ATR-2L(T3b) CForce 625 Touring
ATV CF600ATR-2LC CForce 625 Touring
ATV CF600ATR-2S(T3b) CForce 625
ATV CF600ATR-2SC CForce 625
ATV CF600AU-3L CForce 600 Touring/625 Touring
ATV CF600AU-3LA CForce 600 Touring/625 Touring
ATV CF600AU-3LF CForce 600 Touring/625 Touring
ATV CF600AU-3LH CForce 600 Touring/625 Touring
ATV CF600AU-3S CForce 600/625
ATV CF600AU-3SA CForce 625 EPS
ATV CF600AU-3SF CForce 600
ATV CF600AU-3SH CForce 600
ATV CF600AZ-3L CForce 600
ATV CF600AZ-3LA CForce 600 Touring
ATV CF600AZ-3S CForce 600
ATV CF600AZ-3SA CForce 600
POLICE MOTORCYCLE CF600AU-L (X6 Police) CForce 600

🏍️ 500/520/550cc Series & GOES TERROX 500

ATV CF500ATR-11L GOES TERROX 500L
ATV CF500ATR-11S GOES TERROX 500S
ATV CF500ATR-2L(T3a) CForce 520L
ATV CF500ATR-2L(T3b) CForce 520L
ATV CF500ATR-2S(T3a) CForce 520S
ATV CF500ATR-2S(T3b) CForce 520S
ATV CF500ATR-9L(T3a) CForce 520 L
ATV CF500ATR-9L(T3b) CForce 520 L
ATV CF500ATR-9S(T3a) CForce 550
ATV CF500ATR-9S(T3b) CForce 550
ATV CF500AU-10S CForce 500 S
ATV CF500AU-7A CForce 520S
ATV CF500AU-7C CForce 520L
ATV CF500AU-7L CForce 520L
ATV CF500AU-7LA GOES TERROX 500L
ATV CF500AU-7LF CForce 520L
ATV CF500AU-7S CForce 520 S
ATV CF500AU-7SA GOES TERROX 500S
ATV CF500AU-7SF CForce 500S/CForce 520S
ATV CF500AU-9L CForce 520 L
ATV CF500AU-9LH CForce 520 L
ATV CF500AU-9S CForce 520/CForce 500
ATV CF500AU-9SH CForce 520
ATV CF500AZ-10S CForce 500 S
ATV CF500AZ-9S CForce 500/CForce 520

🏍️ 400/450cc Series & GOES TERROX 400

ATV CF400ATR CForce 450
ATV CF400ATR-2L(T3a) CForce 450L
ATV CF400ATR-2L(T3b) CForce 450L
ATV CF400ATR-2S(T3a) CForce 450S
ATV CF400ATR-2S(T3b) CForce 450S
ATV CF400ATR-3L(T3a) CForce 450 L
ATV CF400ATR-3L(T3b) CForce 450 L
ATV CF400ATR-3S(T3a) CForce 450
ATV CF400ATR-3S(T3b) CForce 450
ATV CF400ATR-4L GOES TERROX 400L
ATV CF400ATR-4S GOES TERROX 400S
ATV CF400ATR-L CForce 450L
ATV CF400AU CForce 400S/450S
ATV CF400AU-3L CForce 450L
ATV CF400AU-3LH CForce 450L
ATV CF400AU-3S CForce 450S
ATV CF400AU-3SH CForce 450S
ATV CF400AU-6S CForce 450S
ATV CF400AU-A CForce 450S
ATV CF400AU-B CForce 450L
ATV CF400AU-G GOES TERROX 400S
ATV CF400AU-L CForce 400L/450L
ATV CF400AU-LA GOES TERROX 400L
ATV CF400AU-LF CForce 450L
ATV CF400AU-SF CForce 450S
ATV CF400AZ-3L CForce 400 TOURING/CForce 450 L
ATV CF400AZ-3S CForce 400/CForce 450
ATV CF400AZ-6L CForce 450L
ATV CF400AZ-6S CForce 450S
POLICE MOTORCYCLE CF400AU (X4 Police) CForce 400S
POLICE MOTORCYCLE CF400AU-3L(Fire) CForce 450L
POLICE MOTORCYCLE CF400AZ-3L(Fire) CForce 450L

📌 Important Note: This part is the front gear case bevel gear assembly, including drive pinion (9T, 14T/25mm spline, 98mm length) and ring gear (33T/132mm OD, 82mm ID, 37mm bolt hole spacing). Compatibility list is based on OEM part number Q830-3100B0 data. If your model is not listed, please verify your original part number or consult your dealer.

⚙️ Features

Front Axle Core Drive Component: Drive pinion and ring gear are the core of the front axle final drive, responsible for torque multiplication and power steering.
Direct OEM Replacement: Part number Q830-3100B0, perfect fit to original front axle mounting.
Precision Gear Matching: Gears are precision machined and heat-treated for smooth engagement and low noise.
High-Strength Material: Made from high-quality alloy steel, strong load capacity, good wear resistance.
Complete Specifications: Drive pinion 9T, 14T/25mm spline; ring gear 33T/132mm.
Restores Drive Performance: Replacing worn or damaged bevel gear set eliminates noise and restores front axle driving force.

⚠️ Compatibility Check: Please verify that your CFMoto model uses front gear case bevel gear assembly part number Q830-3100B0 before ordering. This is a precision component requiring professional installation.
