Rear CV Drive Shaft
- Brand: Mortch Motor
- Product Code: MICF9AWV-280300-8000-M1
- Product Viewed: 4
- Availability: Pre-Order 1-2 Weeks🔔
- Weight: 5.60kg
US$145.63
| Shipping To： |
🔧 CFMoto Rear CV Drive Shaft

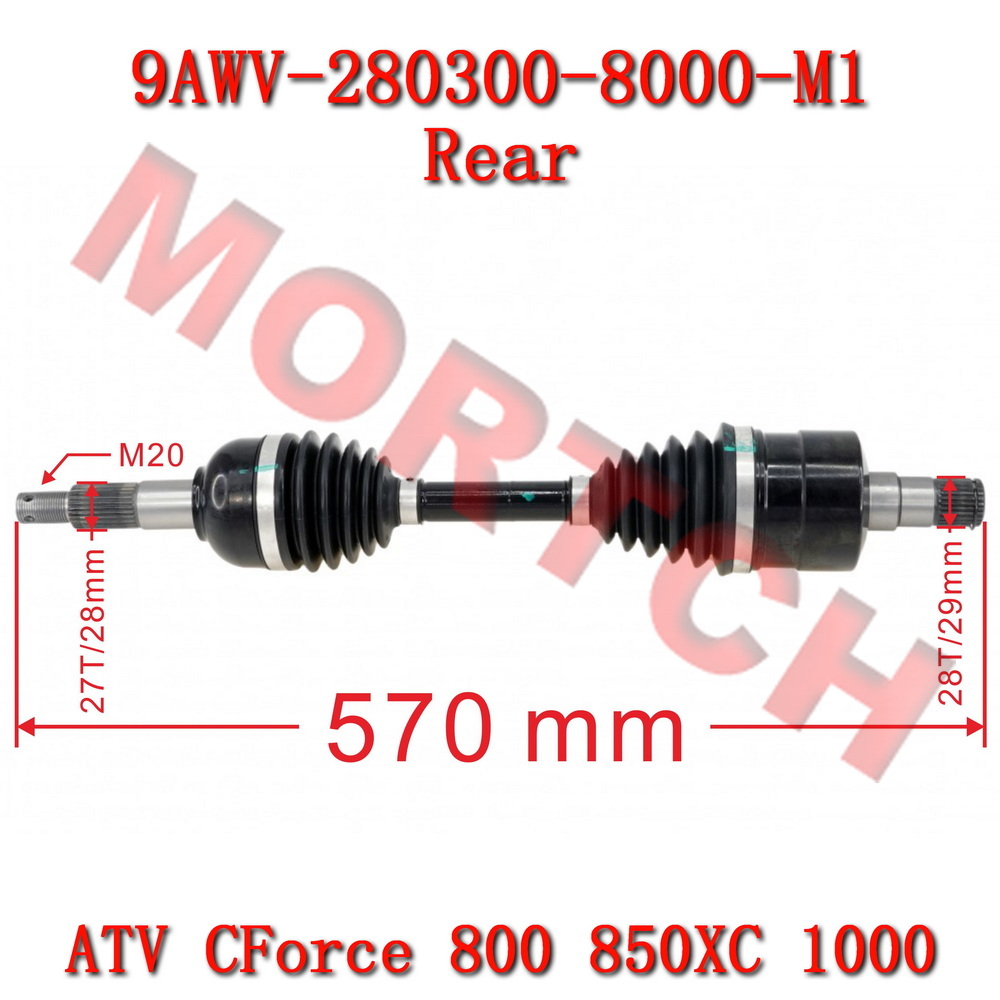

📦 Part Number: 9AWV-280300-8000-M1
⚙️ Rear CV Drive Shaft · CV Axle · OEM Spec
📍 Installation Location: Between rear differential and rear wheel hub
✅ Single unit · High-strength alloy steel · Direct fit · Compatible with multiple CFMoto 1000/850 ATV models
This is a CFMoto OEM-spec Rear CV Drive Shaft, part number 9AWV-280300-8000-M1, sold as a single unit. This drive shaft is a core component of the rear axle drivetrain, installed between the rear differential and the rear wheel hub. It transfers power from the differential to the rear wheels while using constant velocity (CV) joints to accommodate suspension travel and steering angle changes, ensuring smooth and continuous power delivery.
Over time, the original drive shaft may develop CV joint wear, boot cracks causing grease loss and contamination, spline wear, or bending from impact — resulting in noise, vibration, or even complete failure. Replacing with an OEM-spec drive shaft is essential to restore rear axle driveline precision and vehicle safety.
✅ OEM Quality Assurance: Manufactured strictly to CFMoto original technical standards. Made from high-strength alloy steel, with dimensions, spline specifications, and CV joint parameters identical to the genuine part, ensuring a perfect replacement and reliable power transfer performance.
This Rear CV Drive Shaft (part number 9AWV-280300-8000-M1, single unit) fits the following CFMoto ATV models:
- 2024-2026 CF1000ATR-2 · CForce 1000 X10
- 2025-2026 CF1000ATR-2A · CForce 1000 X10 Overland
- 2025-2026 CF1000ATR-3 · CForce 1000 MUD
- 2026 CF1000ATR-4L · GOES TERROX 1000 T3b
- 2025-2026 CF1000AU-2 · CForce 1000 X10 Overland
- 2026 CF1000AU-4L · GOES TERROX 1000 EPS
- 2024-2025 CF1000AZ-2 · CForce 1000 Touring
- 2025 CF1000AZ-2A · CForce 1000 Overland
- 2024-2025 CF800ATR-5 · CForce 850 X8 Touring
- 2025-2026 CF800AU-3 · CForce 850 X8 Touring
- 2024-2025 CF800AZ-3 · CForce 800 Touring/CForce 850 Touring
📌 Fitment Note: This rear CV drive shaft fits the rear axle drivetrain of the listed CFMoto ATV models. Sold as a single unit; one is needed per side. Replacing both left and right sides as a pair is recommended for balanced drivetrain performance. If your specific model is not listed, please contact us with your VIN to confirm compatibility.
- ✅ OEM Original Spec: Manufactured to CFMoto original technical standards; dimensions, spline specs, and CV joint parameters match the genuine part exactly.
- 🛡️ High-Strength Alloy Steel: Made from premium alloy steel with heat treatment for excellent torsional strength and fatigue life.
- 🔧 Precision CV Joints: Equipped with high-precision constant velocity joints for smooth, vibration-free power transfer at high angles.
- 💪 Direct Fitment: Direct replacement for the original part — no modifications required.
- 🔄 Direct Replacement: Replaces worn, noisy, or damaged original rear drive shafts.
• "Clicking" or "popping" noise from the rear axle area during turns or acceleration (worn CV joint).
• Noticeable vibration or shudder from the rear axle at highway speeds.
• CV joint boot is torn, with grease leakage or signs of contamination.
• Spline wear causing delayed or jerky power delivery.
• Bent or deformed drive shaft (usually from a severe impact).
If any of these occur, inspect and replace the drive shaft promptly to prevent further drivetrain damage.
1. Confirm the drive shaft is the correct 9AWV-280300-8000-M1 matching the original.
2. Raise the vehicle with proper support and remove the rear wheel.
3. Remove the drive shaft retaining bolts and pull the shaft out from the differential and hub.
4. Clean the differential and hub mounting interfaces, inspecting the splines for damage.
5. Carefully insert the new drive shaft's splined ends into the differential and hub, ensuring proper spline engagement.
6. Install the retaining bolts and torque to OEM specifications.
7. Reinstall the rear wheel, lower the vehicle, and perform a road test to confirm no noise.
8. Replacing both left and right sides as a pair is recommended for balanced performance.
Installation requires professional lifting equipment and mechanical skill; professional installation recommended.
