CVT ASSY

CVT Maintenance Schedule and Damage Prevention Guide

Vehicle CVT Maintenance Schedule

Post-break-in maintenance schedule (whichever comes first)

Note: Items marked with * are severe use items. Reduce maintenance intervals by 50% when vehicle is used under severe conditions.

Item	Hours	Calendar	Mileage	Remarks
* CVT Drive Belt	Every 100 hours	Annually	1600Km	Inspect, replace if necessary, contact dealer for service
CVT Drive and Driven Pulleys	Every 100 hours	Annually	1600Km	Clean and inspect pulleys, replace worn parts, contact dealer for service

CVT Damage Causes and Prevention Measures

Understand behaviors that may cause CVT system damage and corresponding prevention methods

Causes CVT Damage	Solution
Attempting to load the vehicle onto a truck bed or tall trailer in high gear.	Shift transmission to low gear during loading of the vehicle to prevent belt burning.
Starting out on a steep incline in high gear.	When starting out on steep inclines, use low gear.
Constant driving at low RPM, driving at just above clutch engagement RPM, or at low speed (approximately 3-6 mph [5-10 km/h]) in high gear.	Low gear is highly recommended for cooler CVT operating temperatures and longer component life. Drive at a higher speed or use low gear more frequently.
Insufficient warm-up of CVT exposed to low ambient temperatures	Warm the engine before driving, the CVT drive belt will become more flexible and prevent belt burning.
Slow throttle and easy CVT engagement.	Use the throttle with purpose and effectively for efficient CVT clutch engagement.
Towing/pushing at low RPM/low ground speed.	Use low gear only.
Utility use/plowing snow, dirt, etc.	Use low gear only.
Heavy vehicle load operating at low speed	Use low gear only.
Stuck in mud or snow.	Shift the transmission to low gear, and carefully use fast, aggressive throttle application to engage CVT. WARNING: Excessive throttle may cause loss of control and vehicle overturn.
Climbing over large objects from a stopped position.	Shift the transmission to low gear, and carefully use fast, brief, aggressive throttle application to engage the CVT. WARNING: Excessive throttle may cause loss of control and vehicle overturn.
Belt slipping from water or snow ingestion into the CVT system.	Drain the water from the CVT housing and dry the CVT if possible, or contact your dealer.

If you are unable to find the corresponding parts for the catalog, please contact us.

Image/No	Product	Price

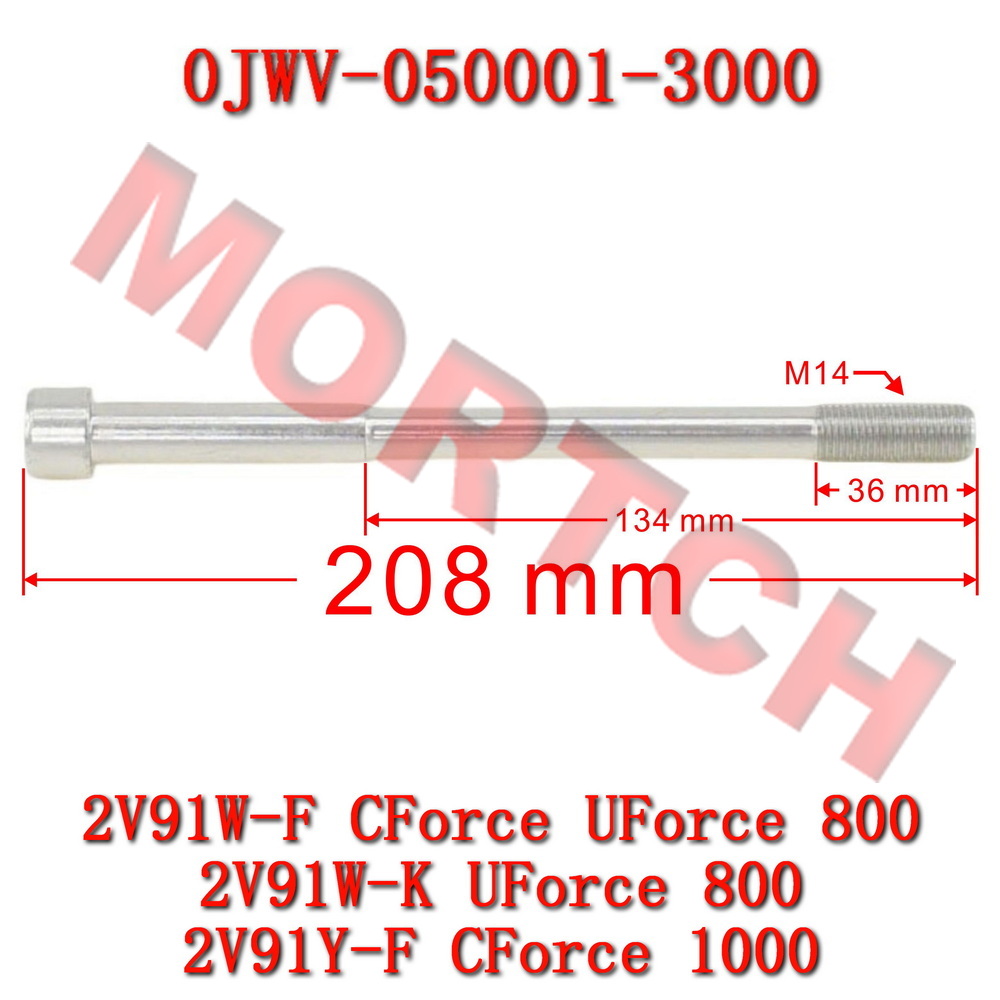

21	Drive Pulley Bolt - Model: MICF0JWV-050001-3000 - Stock：In Stock	US$9.00
35	Bando Belt 1069 35.7 26 - Model: MICF0JWV-055000-3000-M1 - Stock：In Stock	US$147.00
1	MICF0JWV-052000-3000
2	MICF0JWV-060001-3000
3	MICF0JWV-050004-3000
4	MICF0JWV-052100-3000
5	MICF0JWV-052202-3000
6	MICF0JWV-052203-3000
7	MICF0JWV-052006-3000
8	MICF0JWV-052003-3000
9	MICF0JWV-052005-3000
10	MICF30802-00801
11	MICF0JWV-052300-3000
12	MICF0JWV-052001-3000
13	MICF0JWV-052002-3000
14	MICF0JWV-052200-3000
15	MICF30801-03505
16	MICF30023-100045160
17	MICF0JWV-050002-3000
18	MICF0JWV-050003-3000
19	MICF0JWV-050005-3000
20	MICF0JWV-051000-3000
22	MICF30006-060035810
23	MICF0JWV-051300-3000
24	MICF0JWV-051002-3000
25	MICF0JWV-051001-3000
26	MICF0JWV-051600-3000
27	MICF0JWV-051100-3000
28	MICF0JWV-051105-3000
29	MICF0JWV-051110-3000
30	MICF30220-050810
31	MICF0JWV-051006-3000
32	MICF0JWV-051400-3000
33	MICF0JWV-051007-3000
34	MICF0JWV-051200-3000
36	MICF0JWV-051302-3000
37	MICF30805-03205

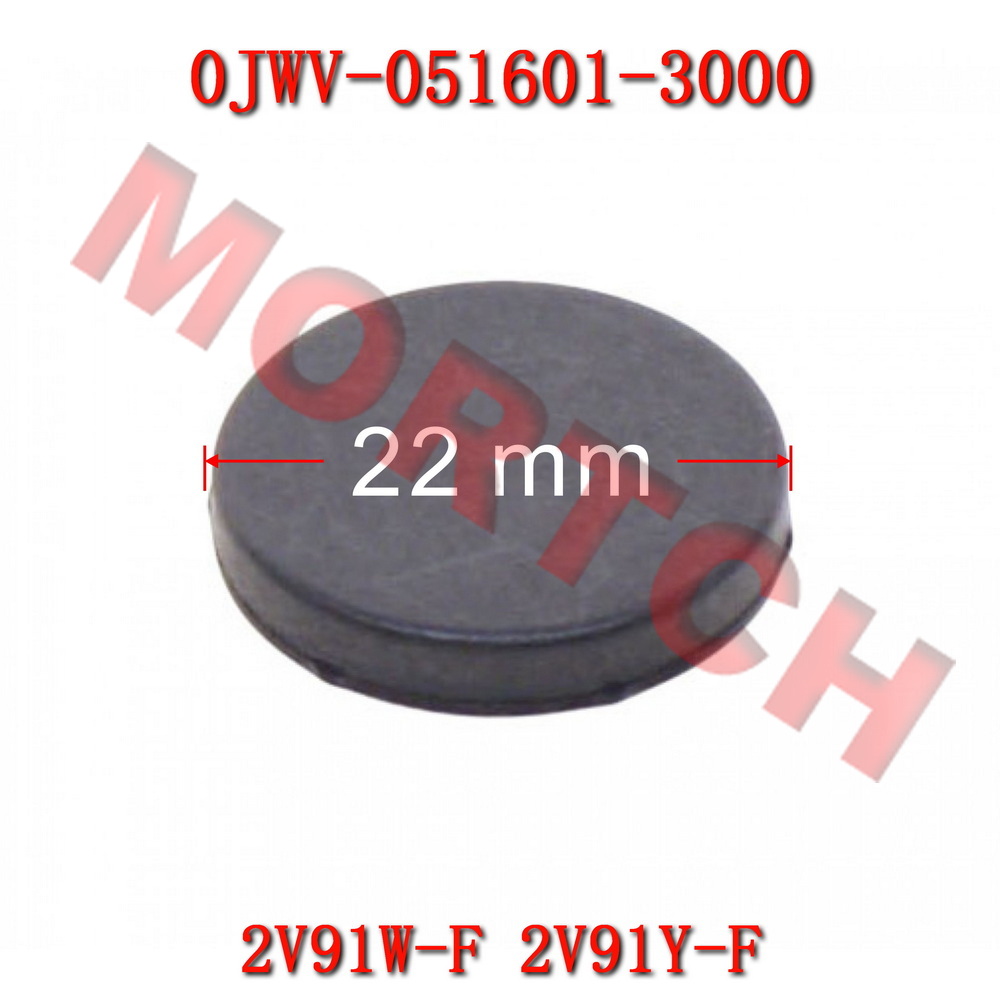

38	MICF0JWV-051601-3000
39	MICF0JWV-051602-3000
40	MICF0JWV-051604-3000
41	MICF0JWV-051620-3000
42	MICF0JWV-051102-3000
43	MICF0JWV-051103-3000
