ATV Fuel Pump Maintenance & Diagnostic Guide
Complete manual for all-terrain vehicle fuel system troubleshooting, maintenance, and repair.
Fuel Pump Failure Symptoms & Diagnostic Process
Identification and troubleshooting methods for common ATV/UTV/SSV fuel pump problems.
Safety First: Always work in a well-ventilated area, away from sparks or open flames. Fuel is highly flammable. Disconnect the battery negative terminal before working on electrical components.
Common Symptoms of Fuel Pump Failure:
Starter motor cranks but engine won't start (no fuel delivery)
Engine starts but stalls immediately
Loss of power or poor acceleration under load
Engine surges or stutters
Unusual buzzing or whining noise from fuel tank area
Vehicle stalls after short periods of running
Poor fuel economy
Engine warning light on dashboard (EFI models)
Diagnostic Flowchart (Where to Start Checking):
Step 1: Basic Checks
Confirm sufficient fuel in tank (at least 1/4 full)
Check fuel lines for kinks, cracks, or leaks
Check fuel filter for blockage
Check fuel tank vent for blockage
Check fuel quality (for contamination or water)
Step 2: Electrical System Check
Listen for 2-3 second buzzing sound (initialization) when turning ignition ON
Check fuel pump fuse (usually 15-20A) and relay
Measure voltage at fuel pump connector (should be 12V+ during initialization)
Check ground wire connection
Check ECU control signal to fuel pump
Step 3: Fuel System Pressure Test
Connect fuel pressure gauge to test port (if equipped)
Check pressure against specifications (EFI systems typically 35-50 PSI)
Check pressure hold after pump stops (should hold for minutes)
Test fuel pressure under load
Common Fuel Pump Problems & Solutions:
| Problem / Symptom | Probable Cause & Solution |
|---|---|
| No fuel pump sound when turning ignition ON | Cause: Blown fuse, faulty relay, wiring issue, pump failure Solution: Check fuse/relay first. Measure voltage at pump connector. If no voltage reaches pump, check wiring and ECU. |
| Pump runs but no pressure or low pressure | Cause: Clogged filter, restricted line, worn pump, clogged pump intake strainer Solution: Replace fuel filter. Check lines for restrictions. Clean or replace pump intake strainer. |
| Intermittent operation (works sometimes) | Cause: Poor electrical connection, failing pump, thermal protection Solution: Check all connectors for oxidation/corrosion. Test immediately when failure occurs. |
| Unusually loud buzzing or whining noise | Cause: Pump running dry, worn pump, cavitation Solution: Ensure sufficient fuel. If noise persists, replace pump. |
| Engine starves for fuel under heavy load | Cause: Insufficient pump output, restricted fuel flow, clogged filter Solution: Test fuel pressure under load. Replace filter and/or pump. |
ATV Fuel System Maintenance Guide | For reference only. Always consult official vehicle service manuals and authorized dealer recommendations.
ATV/UTV/SSV Fuel System Maintenance Guide | For reference only
If you are unable to find the corresponding parts for the catalog, please contact us.
| Image/No | Product | Price |
|---|---|---|
|

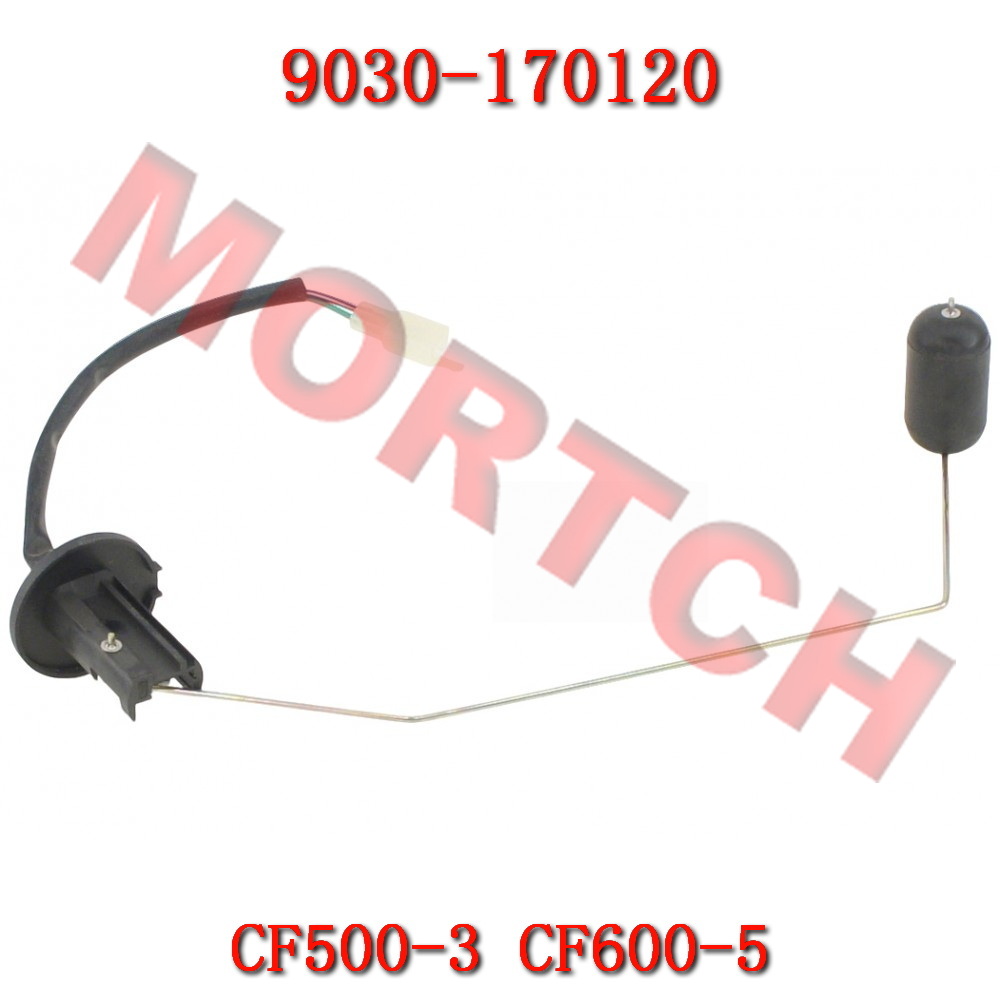

Fuel Level Sensor Assy
|
|
|
Fuel Level Sensor Seal Ring
|
|
|
