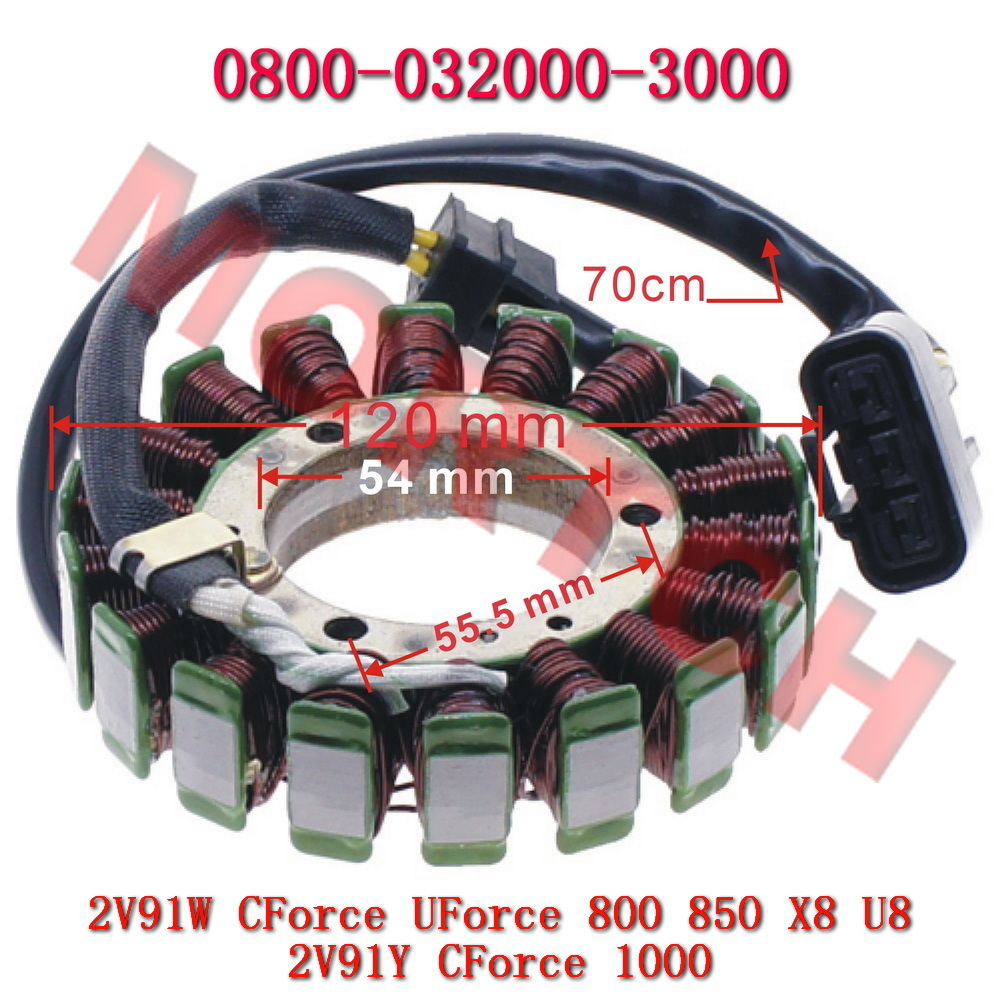

18 Pole Stator Coil, for EPS, High-Power

CF Moto listed part number is 0800-032000-3000

  • Overall diameter: 120mm
  • Center inner diameter: 54mm
  • Mounting Bolts Spacing: 55mm (center to center)
  • Stator: 18 coils
  • Plugs: 3 pins
  • Cable: 70cm

It may fits

  • ENGINE  2016  2V91W FOR CF800ATR-2  CForce 800
  • ENGINE  2017  2V91W FOR CF800ATR-2  CForce 801
  • ENGINE  2018  2V91W FOR CF800ATR-2  CForce 802
  • ENGINE  2019  2V91W FOR CF800ATR-2  CForce 803
  • ENGINE  2020  2V91W FOR CF800ATR-2  CForce 804
  • ENGINE  2017  2V91W FOR CF800UTR-2  UForce 800
  • ENGINE  2018  2V91W FOR CF800UTR-2  UForce 800
  • ENGINE  2019  2V91W FOR CF800UTR-2  UForce 800
  • ENGINE  2020  2V91W FOR CF800UTR-2  UForce 800
  • ENGINE  2021  2V91W FOR CF800UTR-2  UForce 800
  • ENGINE  2022  2V91W FOR CF800UTR-2  UForce 800
  • ENGINE  2021  2V91W FOR CF800UTR-2(GD)  UForce 800
  • ENGINE  2022  2V91W FOR CF800UTR-2(KSR)  UForce 800
  • ENGINE  2021  2V91W FOR CF800UTR-2(SS)  UForce 800
  • ENGINE  2014  2V91W(U8)  UForce 800
  • ENGINE  2015  2V91W(U8)  UForce 800
  • ENGINE  2016  2V91W(U8)  UForce 800
  • ENGINE  2017  2V91W(U8)  UForce 800
  • ENGINE  2018  2V91W(U8)  UForce 800
  • ENGINE  2019  2V91W(U8)  UForce 800
  • ENGINE  2020  2V91W(U8)  UForce 800
  • ENGINE  2021  2V91W(U8)  UForce 800
  • ENGINE  2022  2V91W(U8)  UForce 800
  • ENGINE  2022  2V91W(U8-AU)  UForce 800
  • ENGINE  2020  2V91W(U8-CA)  UForce 800
  • ENGINE  2021  2V91W(U8-CA)  UForce 800
  • ENGINE  2022  2V91W(U8-CA)  UForce 800
  • ENGINE  2022  2V91W(U8-KSR)  UForce 800
  • ENGINE  2019  2V91W(U8-US)  UForce 800
  • ENGINE  2020  2V91W(U8-US)  UForce 800
  • ENGINE  2021  2V91W(U8-US)  UForce 800
  • ENGINE  2022  2V91W(U8-US)  UForce 800
  • ENGINE  2014  2V91W(X8)  X8 800cc
  • ENGINE  2015  2V91W(X8)  X8 800cc
  • ENGINE  2016  2V91W(X8)  X8 800cc
  • ENGINE  2017  2V91W(X8)  X8 800cc
  • ENGINE  2018  2V91W(X8)  X8 800cc
  • ENGINE  2019  2V91W(X8)  X8 800cc
  • ENGINE  2017  2V91W-A  CForce 850
  • ENGINE  2018  2V91W-A  CForce 850
  • ENGINE  2019  2V91W-A  CForce 850
  • ENGINE  2020  2V91W-A  CForce 850
  • ENGINE  2020  2V91W-A(CA)  CForce 850
  • ENGINE  2019  2V91W-A(US)  CForce 850
  • ENGINE  2016  2V91W-S  CForce 800cc
  • ENGINE  2017  2V91W-S  CForce 800cc
  • ENGINE  2018  2V91W-S  CForce 800cc
  • ENGINE  2019  2V91W-S  CForce 800cc
  • ENGINE  2018  2V91Y-X10  CForce 1000
  • ENGINE  2019  2V91Y-X10  CForce 1000
  • ENGINE  2020  2V91Y-X10  CForce 1000
  • ENGINE  2021  2V91Y-X10  CForce 1000
  • ENGINE  2020  2V91Y-X10(CA)  CForce 1000
Mortch Motor parts supported the Brands of BAOTIAN, BASHAN, BENZHOU, CFMOTOR, CHARMING, DAYANG, DINLI, FUXIN, GEELY, GILERA, HANGLONG, HAOJIN, HAOJUE, HISUN, HONGZHOU, HUATIAN, JIAJUE, JIANSHE, JINLUN, JMSTAR, JONWAY, KAITONG, KEEWAY, KINROAD, KYMCO, LIFAN, LINGBEN, LINGTIAN, LINHAI, LINTEX, LONCIN, LONGJIA, MAWI, MEIDUO, MOTORRO, PIAGGIO, QINGQI, RHON, RIEJU, SACHS, SHINERAY, SKYGO, SUKIDA, TAOTAO, VESPA, VONROAD, WANGYE, WONJAN, XINGYUE, XINLING, XINTIAN, YIBEN, YINGANG, ZHONGYU, ZNEN, ZONGSHEN, etc.
Note:
1. Please make sure this parts fits your particular model. Many bikes have the same name but use different parts depending on the year of manufacture.
2. The photos and measurements are for your reference only, and the goods is subject to the real product which you will receive.
3. Import duties, taxes and other customs related charges are not included. Buyers bear all responsibility for all extra charges incurred (if any).
    Product QR Code
  • Brand: Mortch Motor
  • Product Code: MICF0800-032000-3000
  • Product Viewed: 10084
  • Availability: In Stock
  • Weight: 1.07kg
  • Packing Size: 12.00 x 12.00 x 6.00cm
  • $41.67
