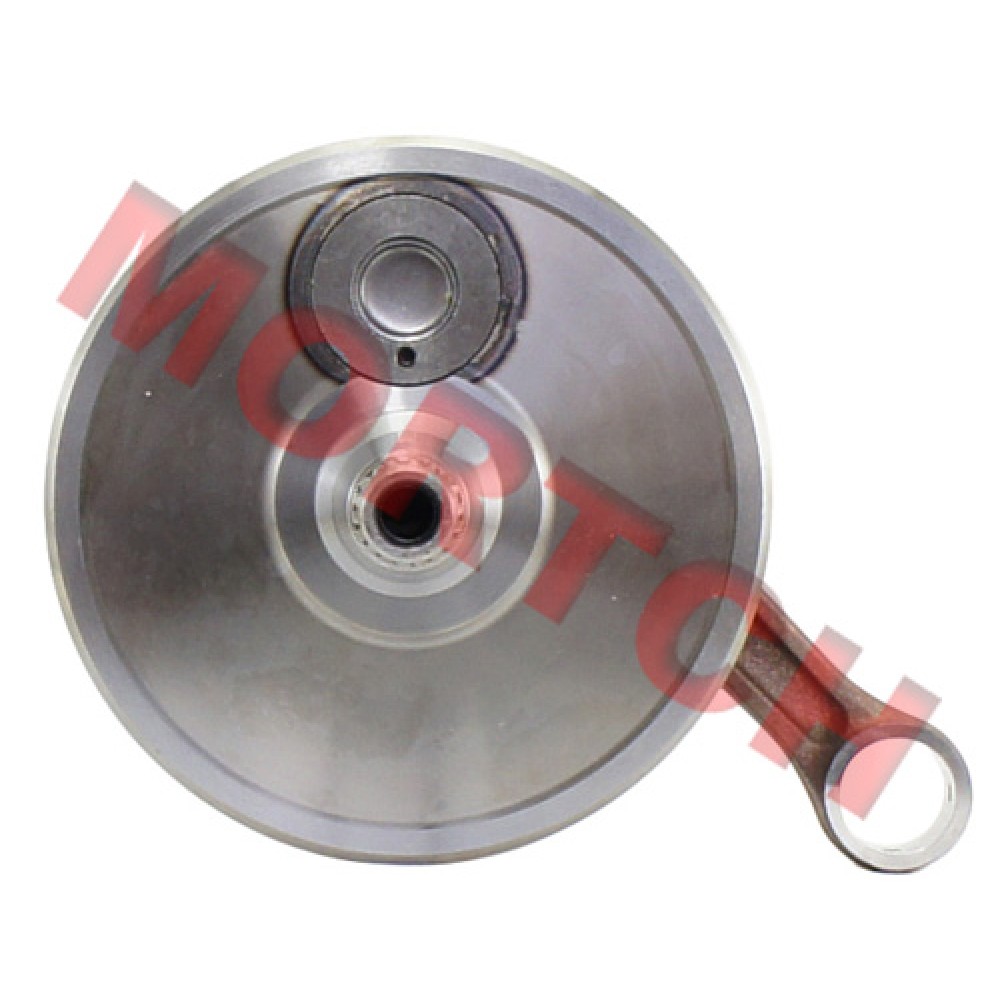

Crankshaft

CF Moto listed part number is 0180-041000 with old part number listed as CF188-041000

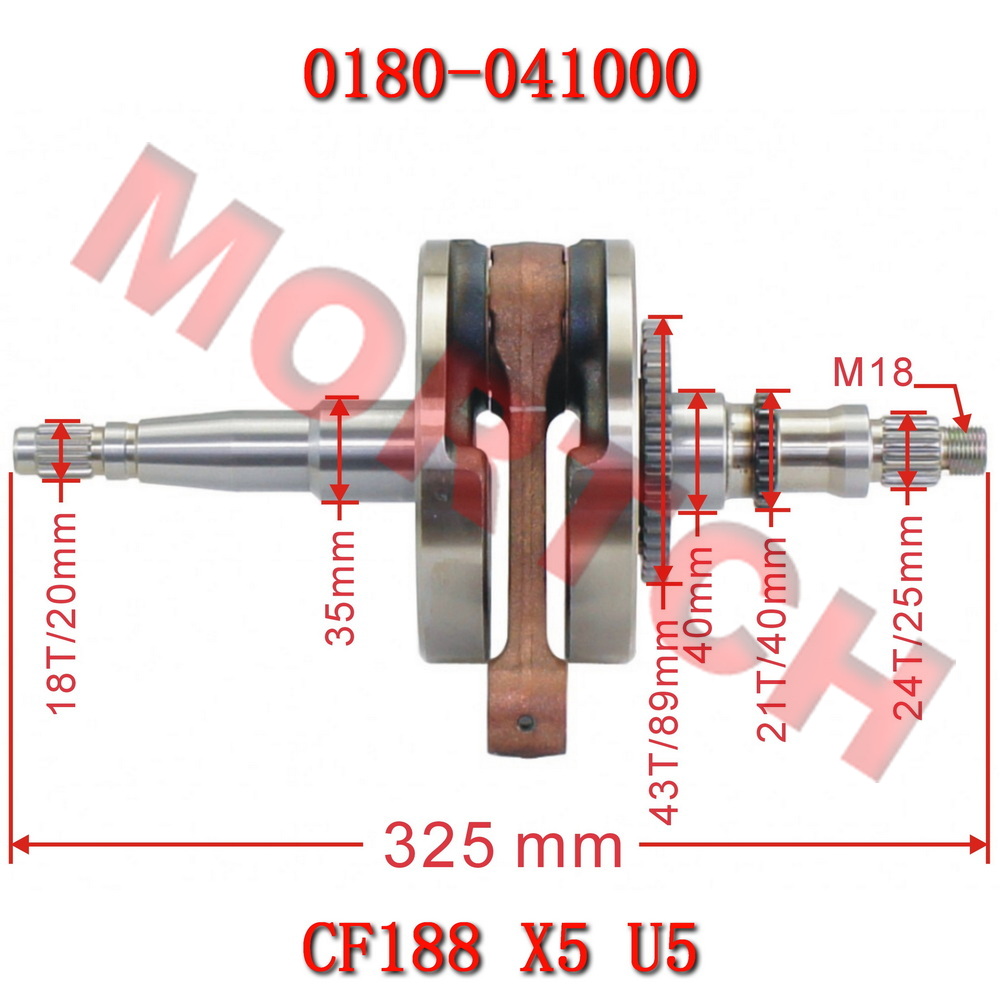

Overrunning Clutch side:

  • 20mm / 18T

Clutch Carrier side:

  • Thread: 18mm
  • 25mm / 24T
  • 40mm / 21T
  • 89mm / 43T

This may fits

  • ATV  CF500  X5  CF188
  • ATV  CF500-2  X5  CF188
  • ATV  CF500-2A  X5  CF188
  • ATV  CF500-5  X5  CF188
  • ATV  CF500-5A  X5  CF188
  • ATV  CF500-5B  X5  CF188-B
  • ATV  CF500-5C  X5  CF188-B
  • ATV  CF500-A  X5  CF188
  • ATV  CF500-B  X5  CF188
  • ATV  CF500-C  X5  CF188
  • ATV  CF500-D  X5  CF188
  • ATV  CF500-E  X5  CF188
  • UTV  CF500-3  UForce 500 U5  CF188-A
Mortch Motor parts supported the Brands of BAOTIAN, BASHAN, BENZHOU, CFMOTOR, CHARMING, DAYANG, DINLI, FUXIN, GEELY, GILERA, HANGLONG, HAOJIN, HAOJUE, HISUN, HONGZHOU, HUATIAN, JIAJUE, JIANSHE, JINLUN, JMSTAR, JONWAY, KAITONG, KEEWAY, KINROAD, KYMCO, LIFAN, LINGBEN, LINGTIAN, LINHAI, LINTEX, LONCIN, LONGJIA, MAWI, MEIDUO, MOTORRO, PIAGGIO, QINGQI, RHON, RIEJU, SACHS, SHINERAY, SKYGO, SUKIDA, TAOTAO, VESPA, VONROAD, WANGYE, WONJAN, XINGYUE, XINLING, XINTIAN, YIBEN, YINGANG, ZHONGYU, ZNEN, ZONGSHEN, etc.
Note:
1. Please make sure this parts fits your particular model. Many bikes have the same name but use different parts depending on the year of manufacture.
2. The photos and measurements are for your reference only, and the goods is subject to the real product which you will receive.
3. Import duties, taxes and other customs related charges are not included. Buyers bear all responsibility for all extra charges incurred (if any).
    Product QR Code
  • Brand: Mortch Motor
  • Product Code: MICF0180-041000
  • Product Viewed: 16239
  • Availability: In Stock
  • Weight: 7.00kg
  • $146.67
